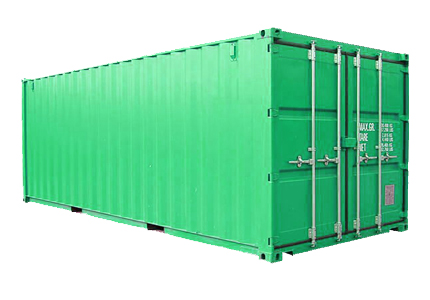

Standard 20′

Inside Length 19’4″ 5.90m
Inside Width 7’8″ 2.35m
Inside Height 7’10” 2.39m
Door Width 7’8″ 2.34m
Door Height 7’6″ 2.28m
Capacity 1,172 ft³ 33.2m³
Tare Weight 4,916 lbs 2,229 kg
Max Cargo Weight 47,900 lbs 21,727 kg

Standard 40′

Inside Length 39’5″ 12.036 m
Inside Width 7’8″ 2.35m
Inside Height 7’10” 2.392m
Door Width 7’8″ 2.34m
Door Height 7’6″ 2.28m
Capacity 2,390 Cft 67.7 Cu.m
Tare Weight 8,160 Lbs 3,700 Kgs
Max Cargo Weight 59,040 Lbs 26,780 Kgs

High Cube 20′

Inside Length 19’4″ 5.892 m
Inside Width 7’7″ 2.311 m
Inside Height 7’10” 2.39m
Door Width 7’6″ 2.286 m
Door Height 7’6″ 2.28m
Capacity 1,150 Cft 32.63 Cu.m
Tare Weight 5,060 Lbs 2,300 Kgs
Max Cargo Weight 61,996 Lbs 28,180 Kgs

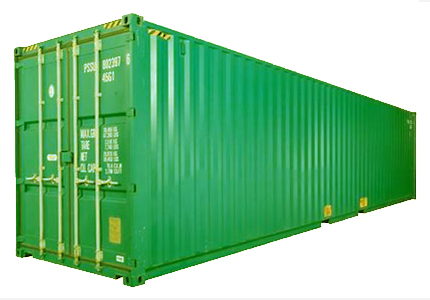

High Cube 40′

Inside Length 39’5″ 12.036 m
Inside Width 7’8″ 2.35m
Inside Height 8’10” 2.697 m
Door Width 7’8″ 2.338 m
Door Height 8’5″ 2.258 m
Capacity 2,694 Cft 76.3 Cu.m
Tare Weight 8,750 Lbs 3,970 Kgs
Max Cargo Weight 58,450 Lbs 26,510 Kgs

Reefer 20′

Inside Length 17’8″ 5.425 m
Inside Width 7’5″ 2.275 m
Inside Height 7’5″ 2.260 m
Door Width 7’5″ 2.258 m
Door Height 7’3″ 2.216 m
Capacity 1,000 Cft 28.3 Cu.m
Tare Weight 7,040 Lbs 3,200 Kgs
Max Cargo Weight 45,760 Lbs 20,800 Kgs

Reefer 40′

Inside Length 37’8″ 11.493 m
Inside Width 7’5″ 2.270 m
Inside Height 7’2″ 2.197 m
Door Width 7’5″ 2.282 m
Door Height 7’10” 2.155 m
Capacity 2,040 Cft 57.8 Cu.m
Tare Weight 10,780 Lbs 4,900 Kgs
Max Cargo Weight 56,276 Lbs 25,580 Kgs

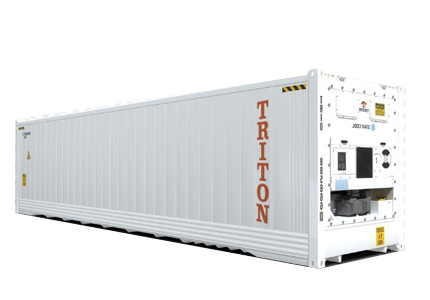

Reefer 40′ High Cube

Inside Length 37’11” 11.557 m
Inside Width 7’6″ 2.294 m
Inside Height 8’2″ 2.500 m
Door Width 7’6″ 2.294 m
Door Height 8’0″ 2.440 m
Capacity 2,344 Cft 66.6 Cu.m
Tare Weight 9,900 Lbs 4,500 Kgs
Max Cargo Weight 57,561 Lbs 25,580 Kgs

Open Top 20′

Inside Length 19’4″ 5.894 m
Inside Width 7’7″ 2.311 m
Inside Height 7’8″ 2.354 m
Door Width 7’6″ 2.286 m
Door Height 7’2″ 2.184 m
Capacity 1,136 Cft 32.23 Cu.m
Tare Weight 5,280 Lbs 2,400 Kgs
Max Cargo Weight 47,620 Lbs 21,600 Kgs

Open Top 40′

Inside Length 39’5″ 12.028 m
Inside Width 7’8″ 2.35m
Inside Height 7’8″ 2.345 m
Door Width 7’8″ 2.341 m
Door Height 7’5″ 2.274 m
Capacity 2,350Cft 65.5 Cu.m
Tare Weight 8,490 lbs 3,850 kg
Max Cargo Weight 58,710 lbs 26,630 kg

Flat Rack 20′

Inside Length 18’5″ 5.620m
Inside Width 7’3″ 2.200m
Inside Height 7’4” 2.233m
Door Width – –
Door Height – –
Capacity – –
Tare Weight 5,578 lbs 5,578 kg
Max Cargo Weight 47,333 lbs 21,470 kg

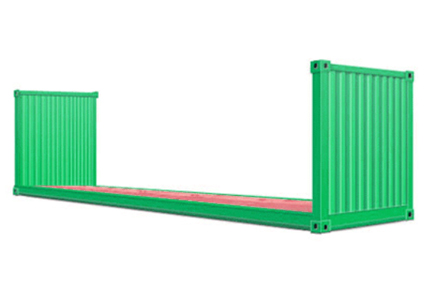

Flat Rack 40′

Inside Length 39’7″ 12.080m
Inside Width 6’10” 22.438m
Inside Height 6’5” 22.103m
Door Width – –
Door Height – –
Capacity – –
Tare Weight 12,081 lbs 5,480 kg
Max Cargo Weight 85,800 lbs 39,000 kg

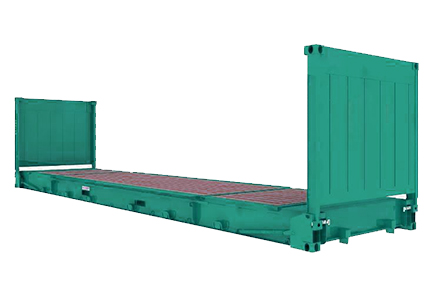

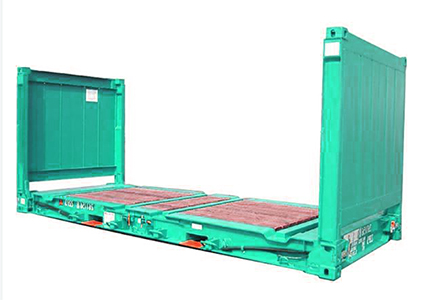

Flat Rack Collapsible 20′

Inside Length 18’6″ 5.618m
Inside Width 7’3″ 2.208m
Inside Height 7’4” 2.233m
Door Width – 2–
Door Height – –
Capacity – –
Tare Weight 6,601 lbs 2,750 kg
Max Cargo Weight 61,117 lbs 27,730 kg

Flat Rack Collapsible 40′

Inside Length 39’7″ 12.080m
Inside Width 6’10” 2.126m
Inside Height 6’5″ 2.043m
Door Width – –
Door Height – –
Capacity – –
Tare Weight 12,787 lbs 5,800 kg
Max Cargo Weight 85,800 lbs 39,000 kg

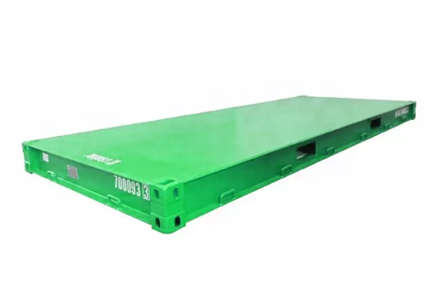

Platform 20′

Inside Length 19’11” 6.058 m
Inside Width 8’0″ 2.438m
Inside Height 7’4” 2.233m
Door Width – –
Door Height – –
Capacity – –
Tare Weight 6,061 lbs 2,750 kg
Max Cargo Weight 52,896 lbs 24,000 kg

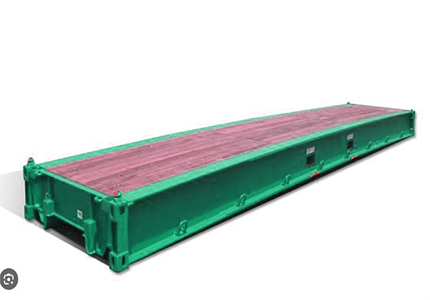

Platform 40′

Inside Length 40’0″ 12.18m
Inside Width 8’0″ 2.40m
Inside Height 6’5″ 1.95 m
Door Width – –
Door Height – –
Capacity – –
Tare Weight 12,783 Lbs 5,800 Kgs
Max Cargo Weight 86,397 Lbs 39,200 Kgs

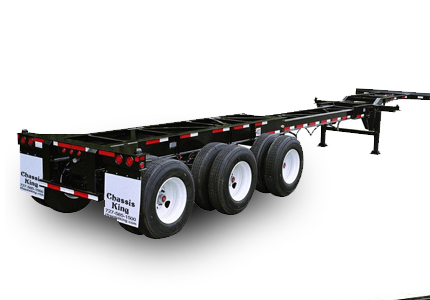

Chassis 33′ Tri-Axle

Length Maxi Cargo Tare Cargo
Overall Extended 41’3″” 10,900 Lbs 44,500 Lbs
Maximum Length 12.6 m 4,950 Kgs 20,185 Kgs

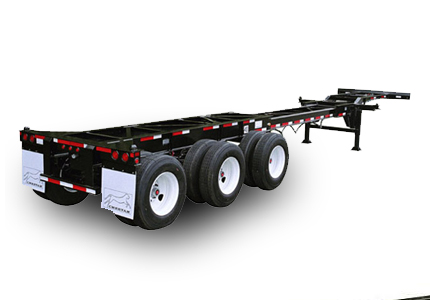

Chassis 40′ Gooseneck

Length Maxi Cargo Tare Cargo
Overall Extended 41’3″” 6,500 Lbs 44,500 Lbs
Maximum Length 12.6 m 2,950 Kgs 20,185 Kgs

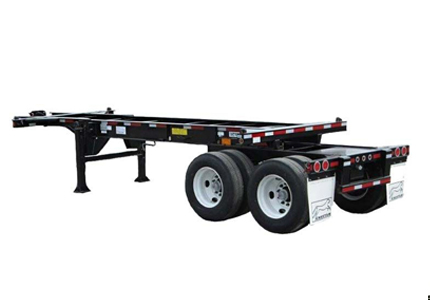

Chassis 23’5″

Length Maxi Cargo Tare Cargo
Overall Extended 23’6″ 6,600 Lbs 33,500 Lbs
Overall Extended 27’2″ 6,600 Lbs 39,500 Kgs
